Pacific European Window Sill & Threshold Collection
Window sills, door sills and thresholds in granite and quartz: six profiles, cut to size, edge-bevelled and crated for export.

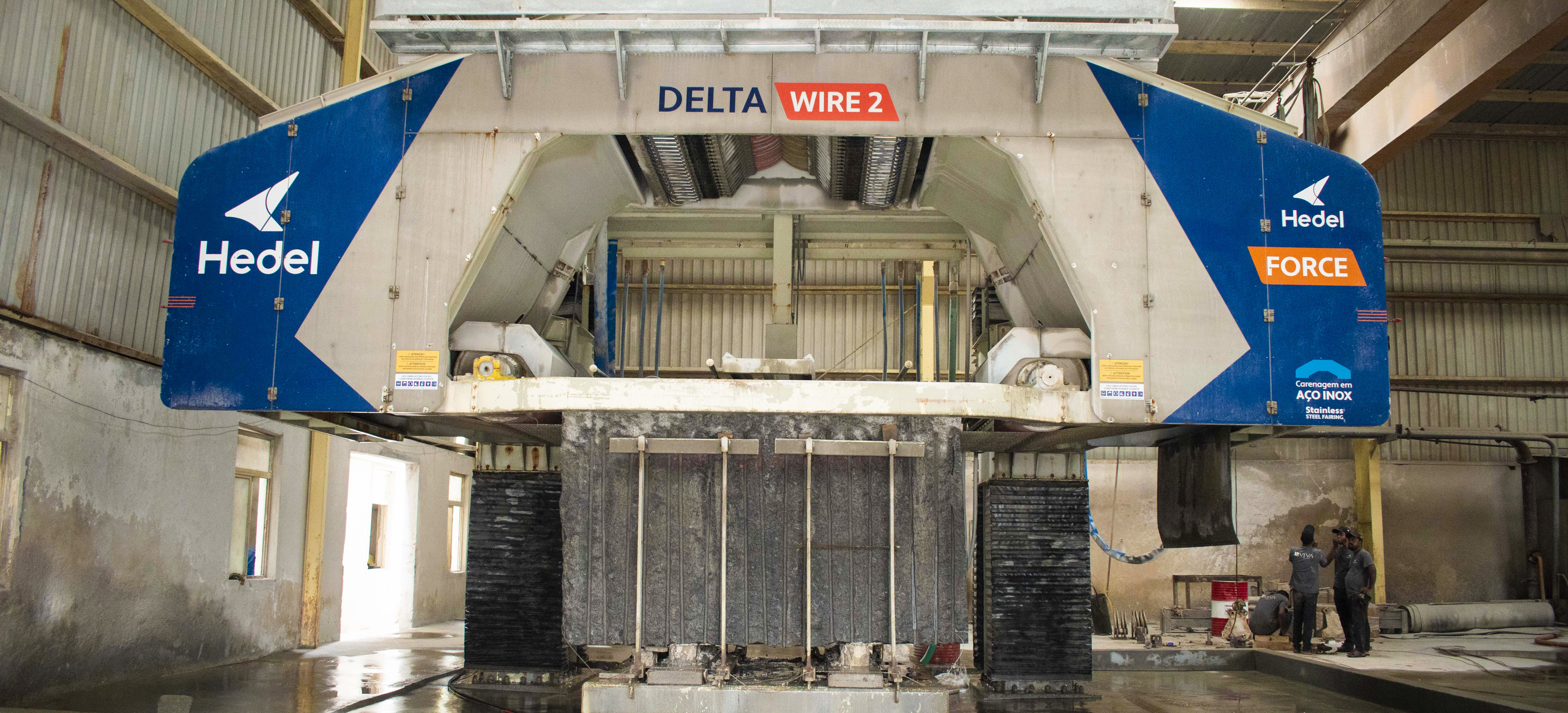

Cut from Pacific granite and quartz

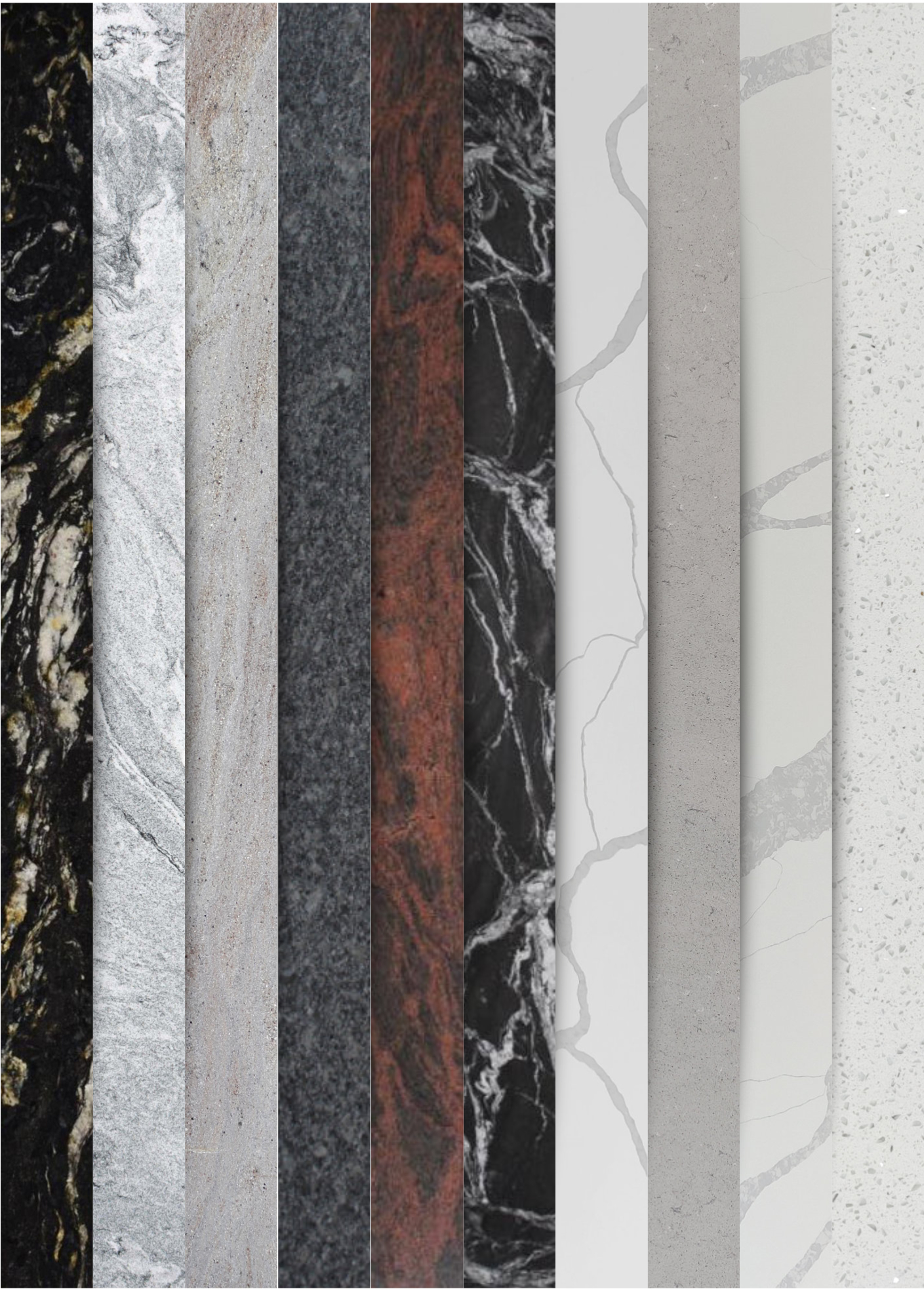

Any colour in the Pacific granite range, inside or out, or in the quartz range for interiors.

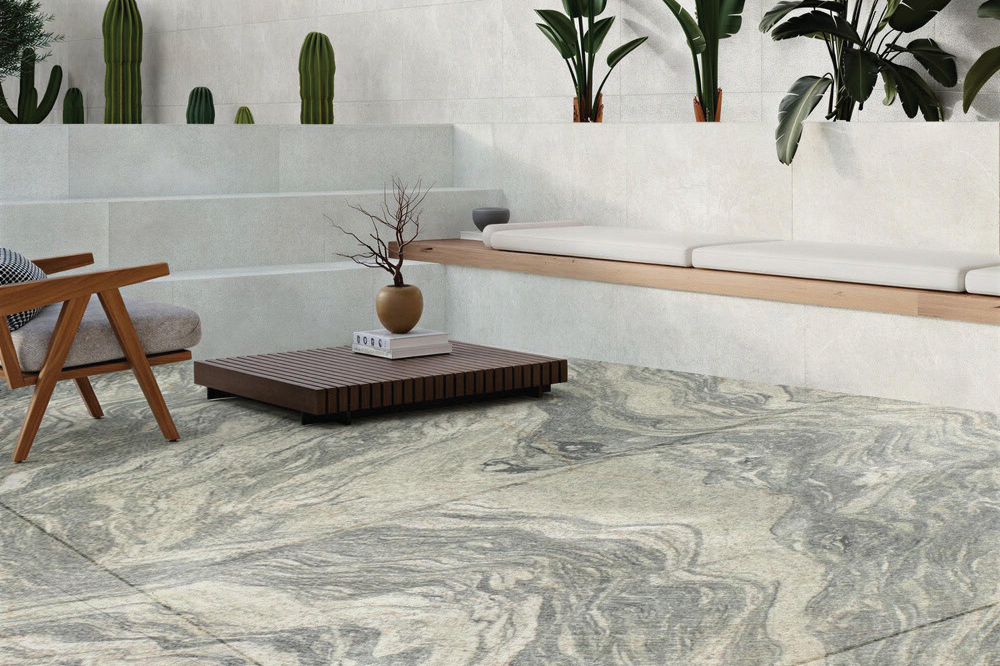

The same slabs are cut for floors, worktops and walls, so a sill or a threshold can match the stone around it.
Six profiles
The sections as the supplier draws them, not to a common scale. Every piece is finished, cut to size and edge-bevelled.
Window sills
Sills with an upstand at the back and a drip groove under the front edge.
Window sill with upstand
A straight sill with an upstand along the back edge, where it meets the window frame, and a drip groove under the front edge.
Window sill sizesWindow sill with glued upstand
The same straight sill with its upstand glued on along the back edge, and a drip groove under the front edge.
Window sill sizesWindow sill with sloped top
An upstand at the back, a top cut to a slope across the sill, and a drip groove under the front edge.
Window sill sizesDoor sills and thresholds
For the door line: a stepped or sloped sill, or a ramp for step-free access.
Stepped door sill
A raised step at the back, where the door closes, and a sloped tread falling to the front edge.
Threshold and door sill sizesSloped door sill
Level at the back, then a straight slope down to a thinner front edge.
Threshold and door sill sizesWheelchair threshold
Level at the back, then a long curved ramp down to a thin front edge, for a step-free door line.
Threshold and door sill sizesStandard sizes
Length down the side and width across the top, in centimetres; each cell gives the thickness in centimetres. Other lengths are cut to size.
Window sills
| L \ W | 15 | 20 | 25 | 30 | 40 |
|---|---|---|---|---|---|
| 88 | · | 2 | 2 | · | · |
| 101 | · | 2 | 2 | 2 | · |
| 126 | · | 2 | 2 | 2 | · |
| 151 | · | 2 | · | 2 | · |
| 176 | · | 2 | 2 | · | · |
| 220 | 2 | 2 | 2 | 3 | 2 |
Thresholds and door sills
| L \ W | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 12 | 13 | 14 | 15 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 103 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 |
| 120 | 3 | 4 | 5 | 6 | · | · | · | · | · | · | · |
Materials and finishes
Materials

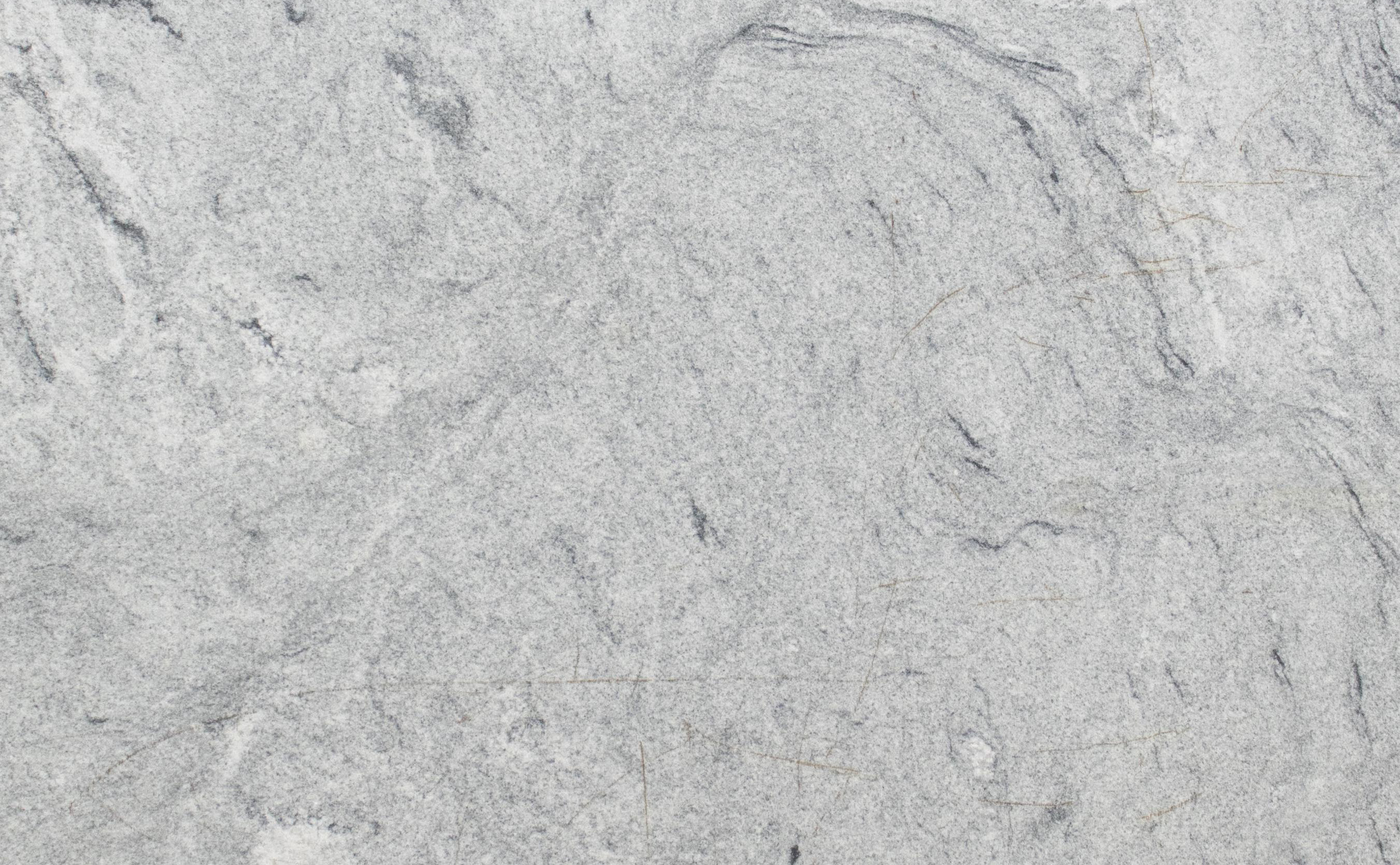

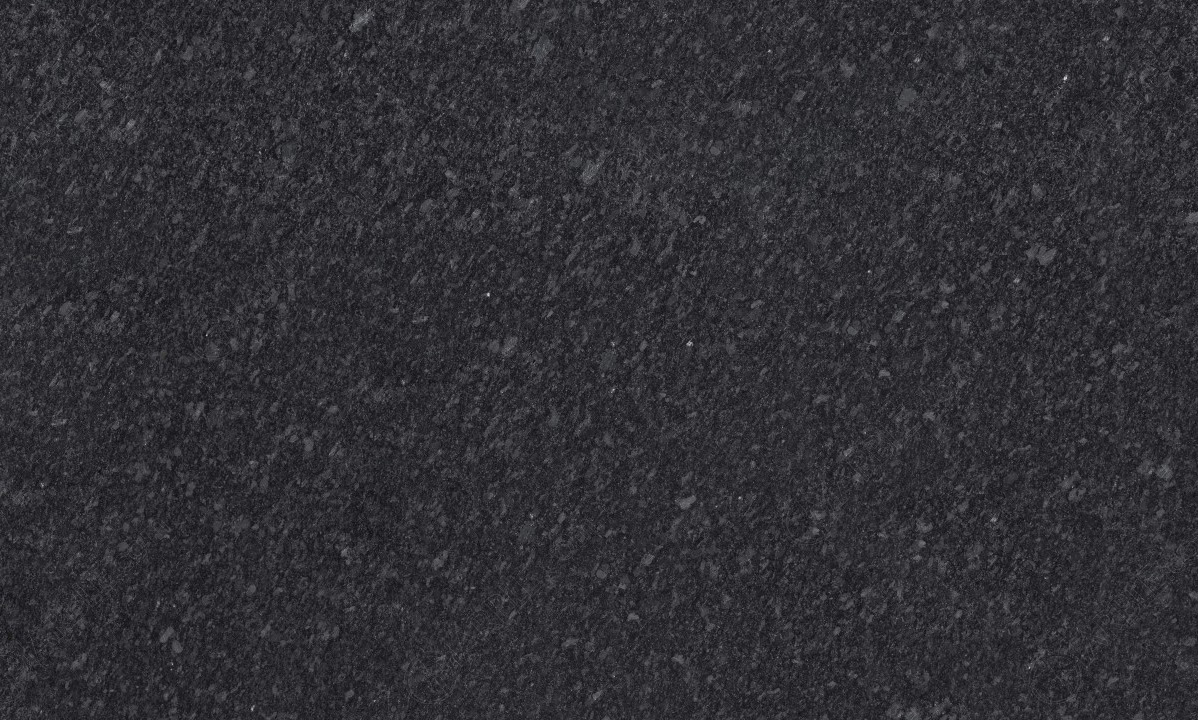

- GraniteAny colour in the Pacific granite range, for interiors and exteriors.Colours

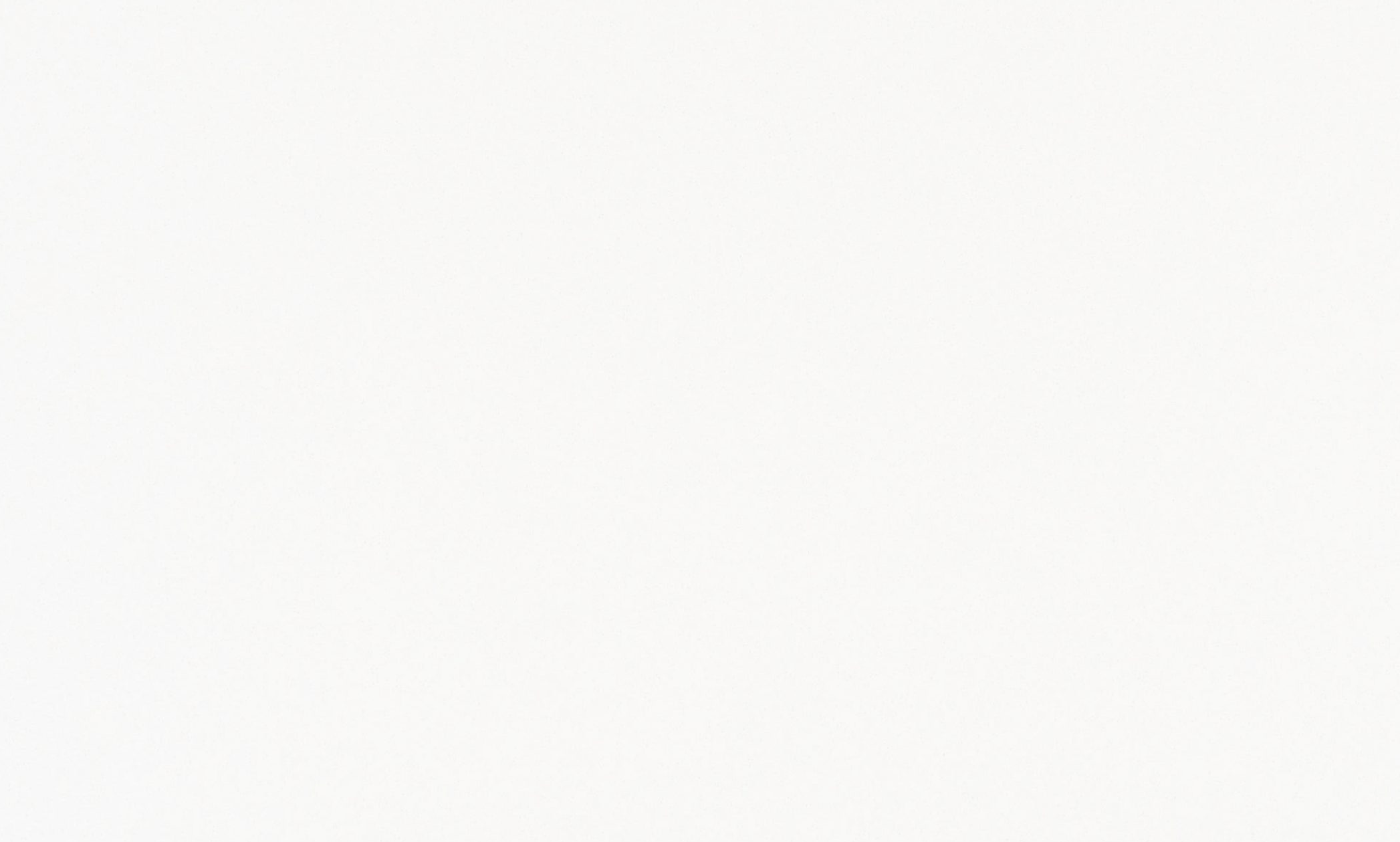

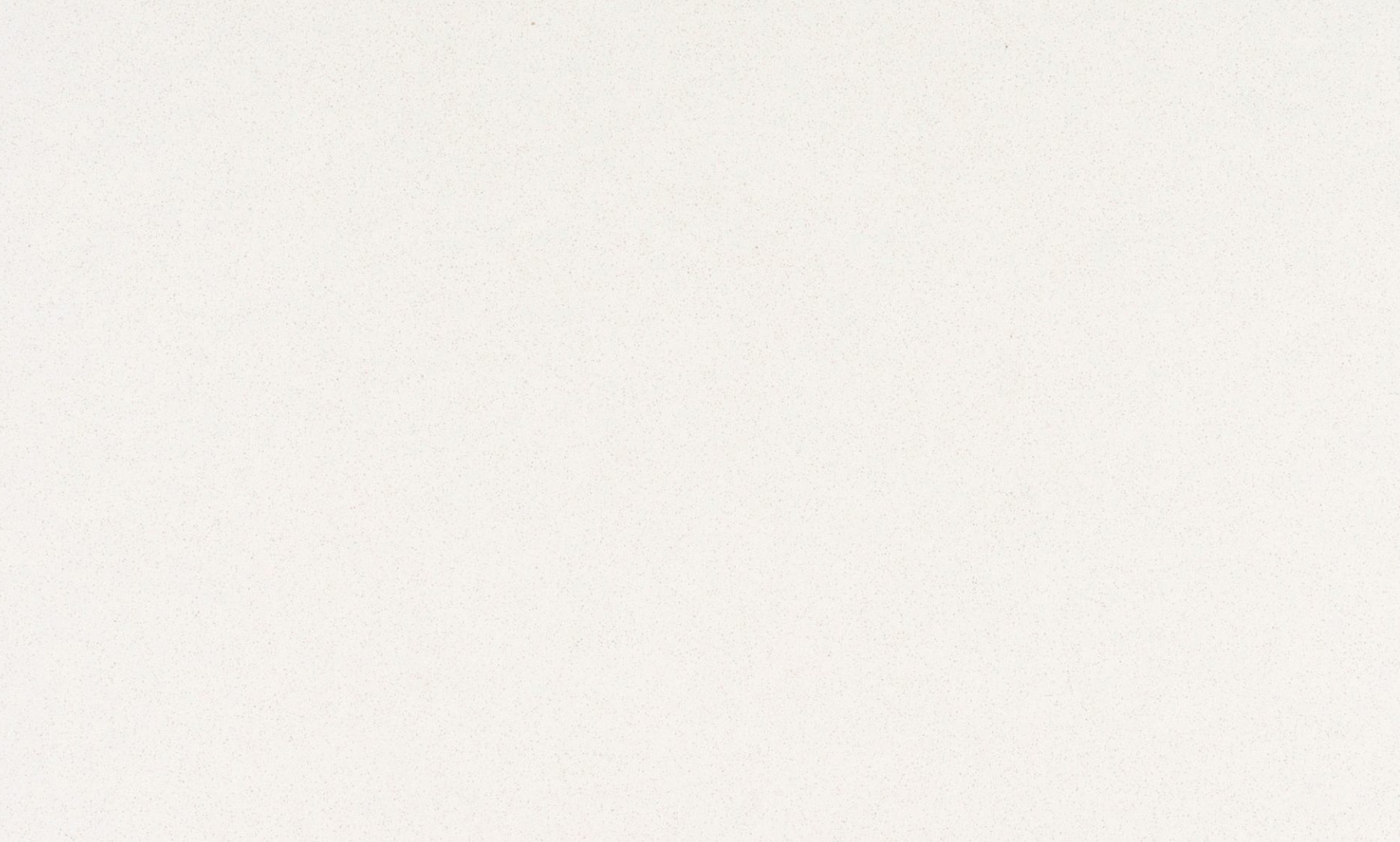

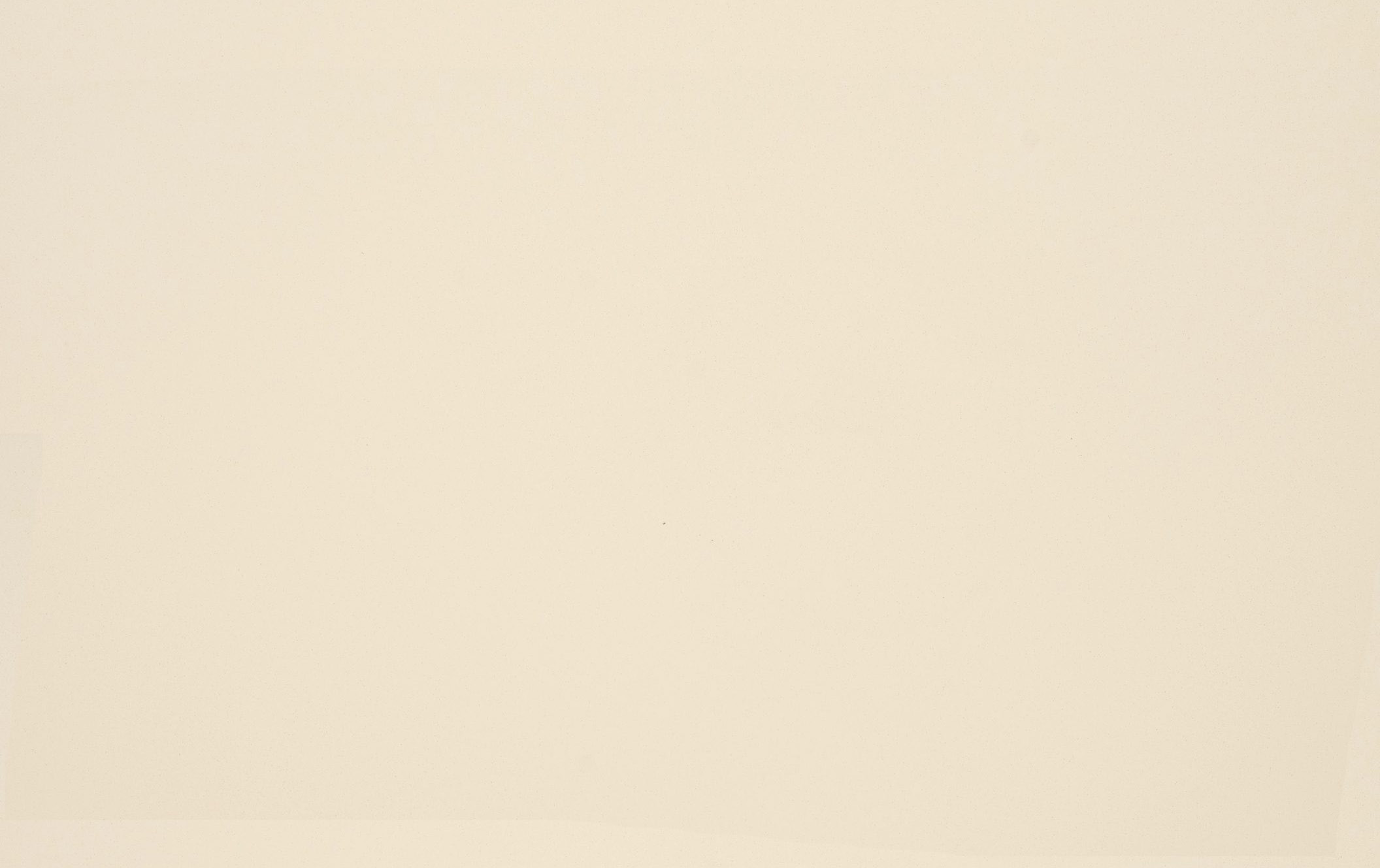

- QuartzAny colour in the Pacific quartz range, for interiors only.Colours
Finishes
- PolishedA mirror gloss that deepens the colour.
- HonedGround smooth to a flat, matt face.
- LeatherBrushed to a soft, tactile texture with a low sheen.
Approve a physical sample of the colour and finish before ordering.
Technical specifications
Every size with its thickness, the pieces in a crate and the crate's approximate weight and area, with packing, MOQ and HS codes.

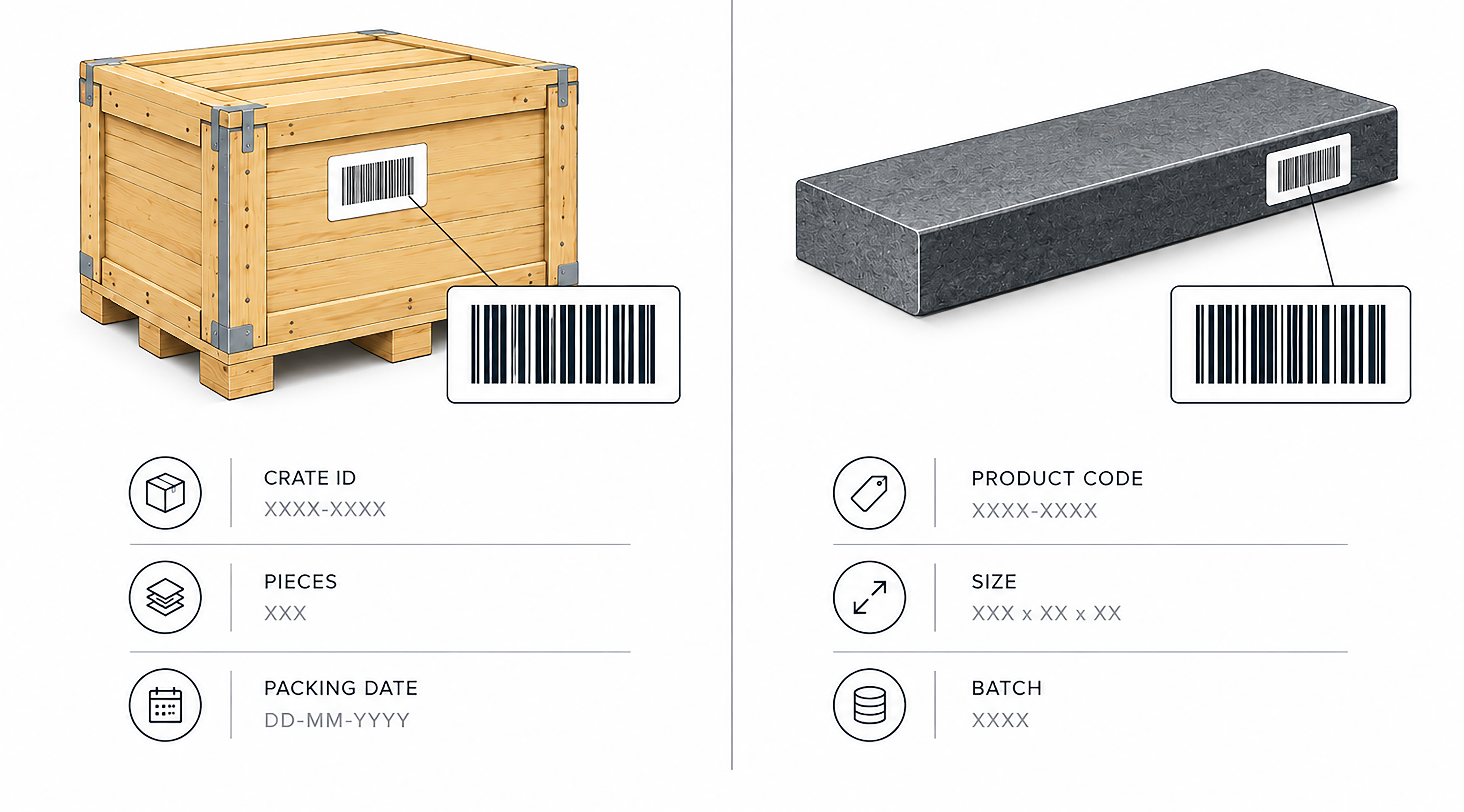

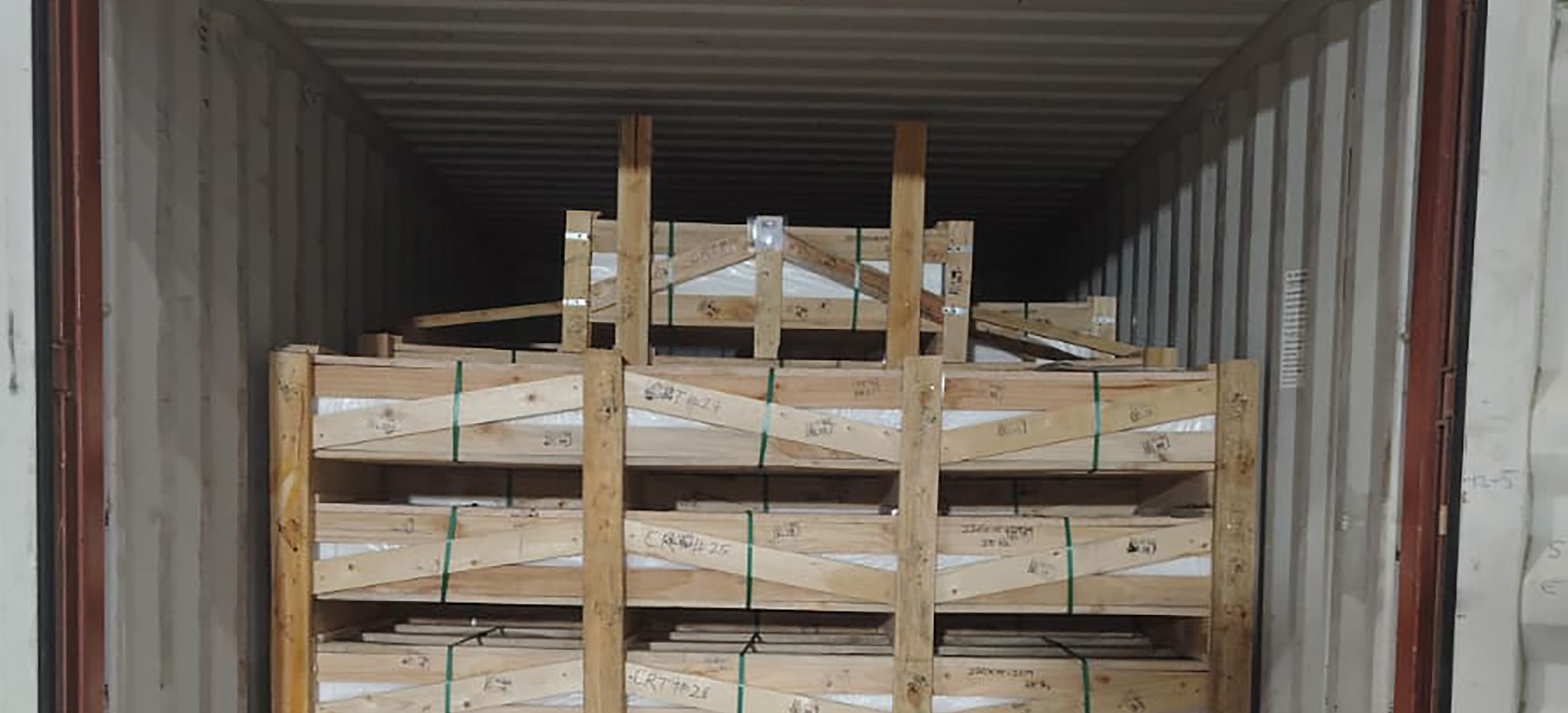

- Packing

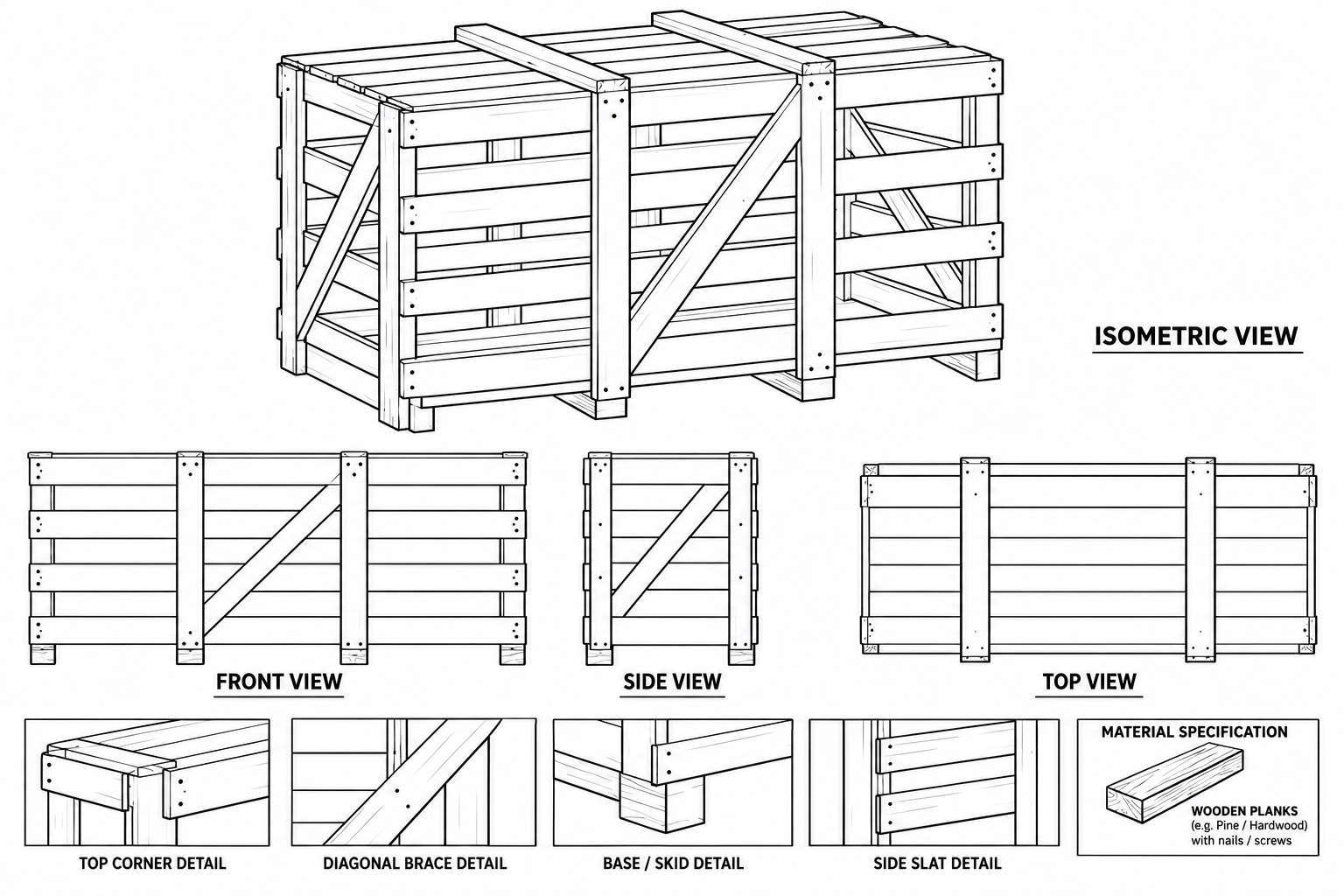

- Wooden crate packing. Cut to size and custom lengths available.
- Minimum order
- 1 container load (approx. 21 to 26.5 MT net). Sizes can be mixed in the container.
Planning a project?
Send us the window and door schedule with the profiles, lengths and depths. We reply with a quote and a crate plan for the container.

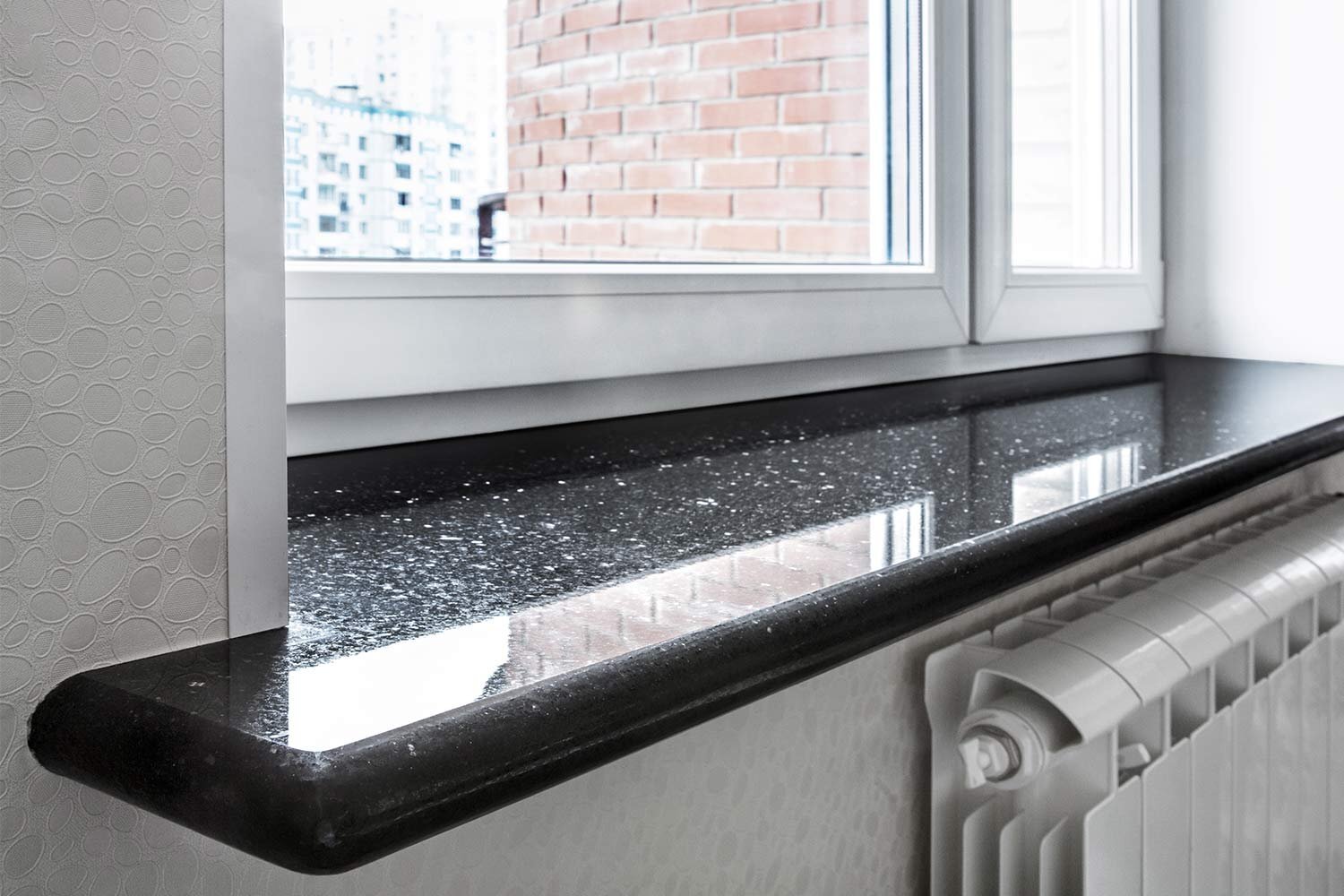

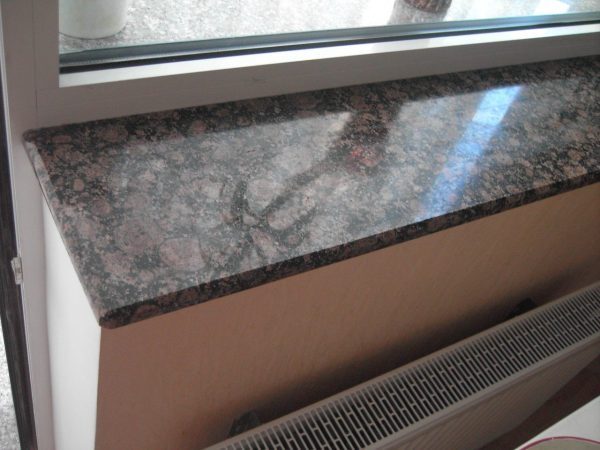

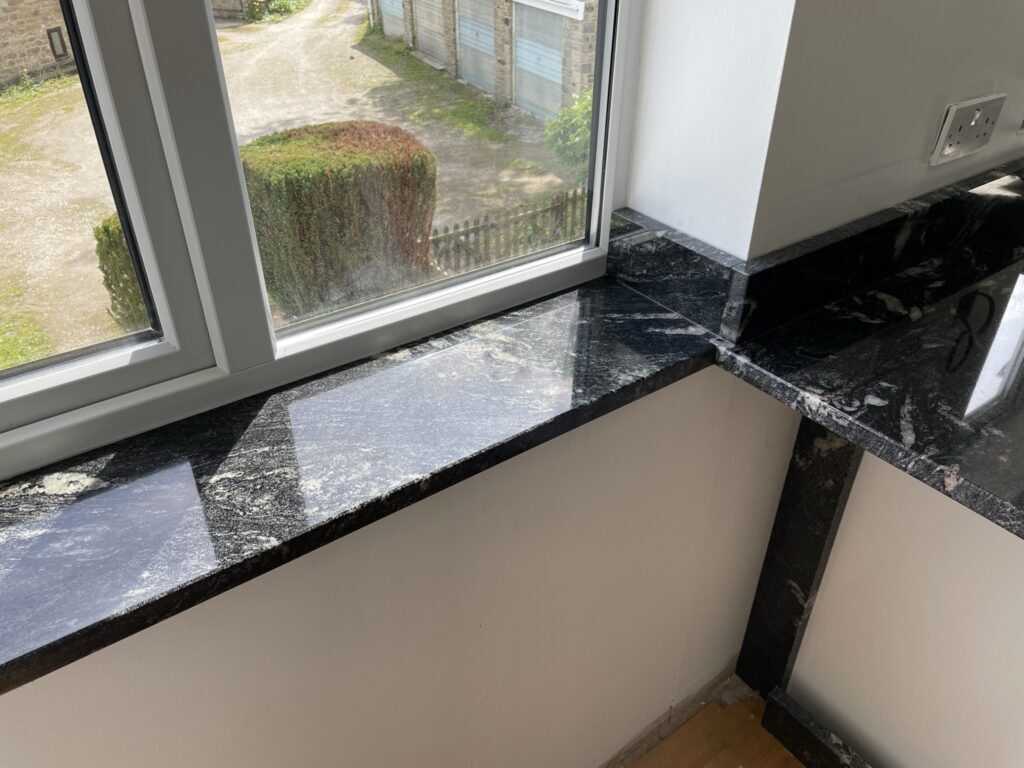

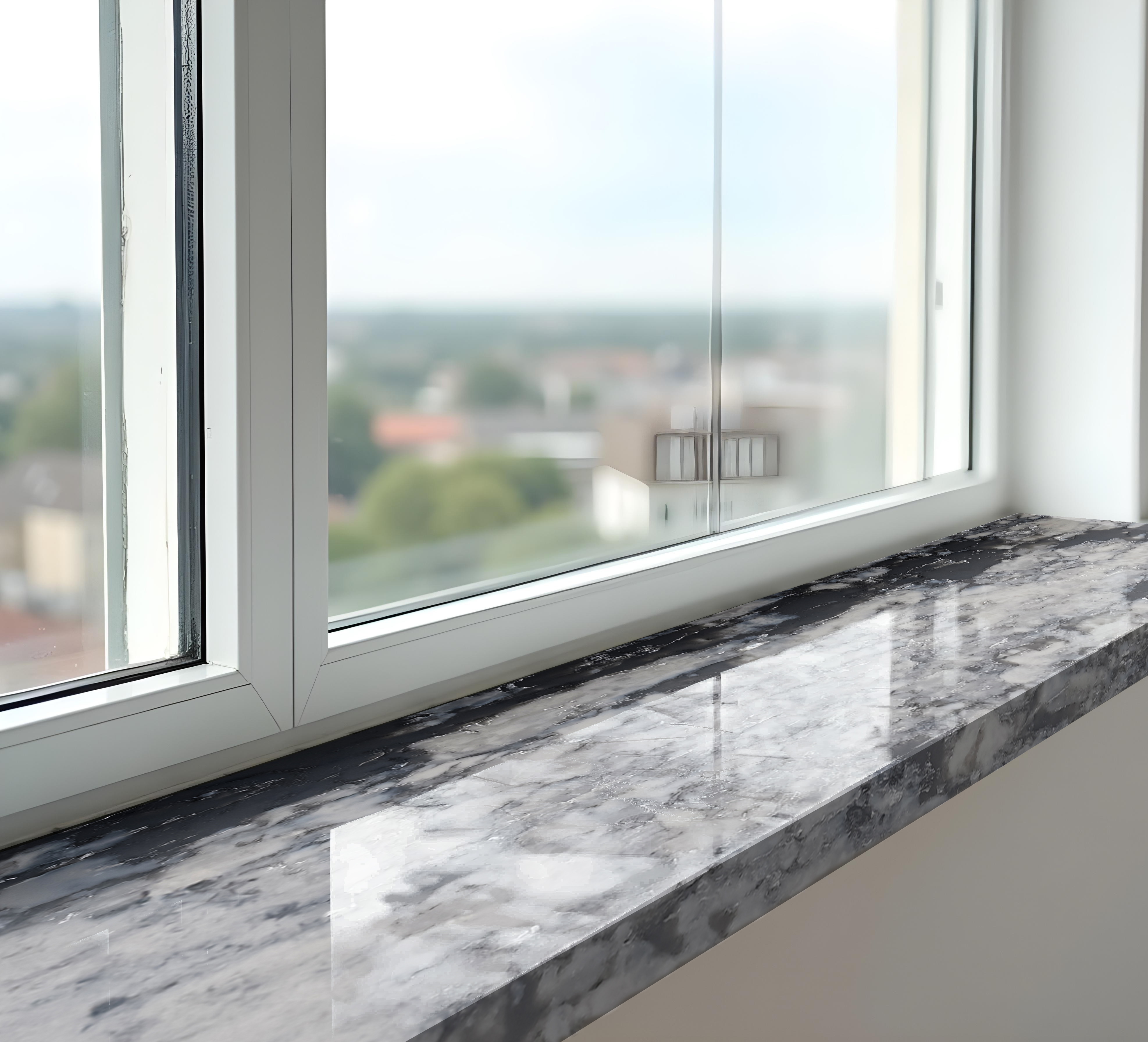

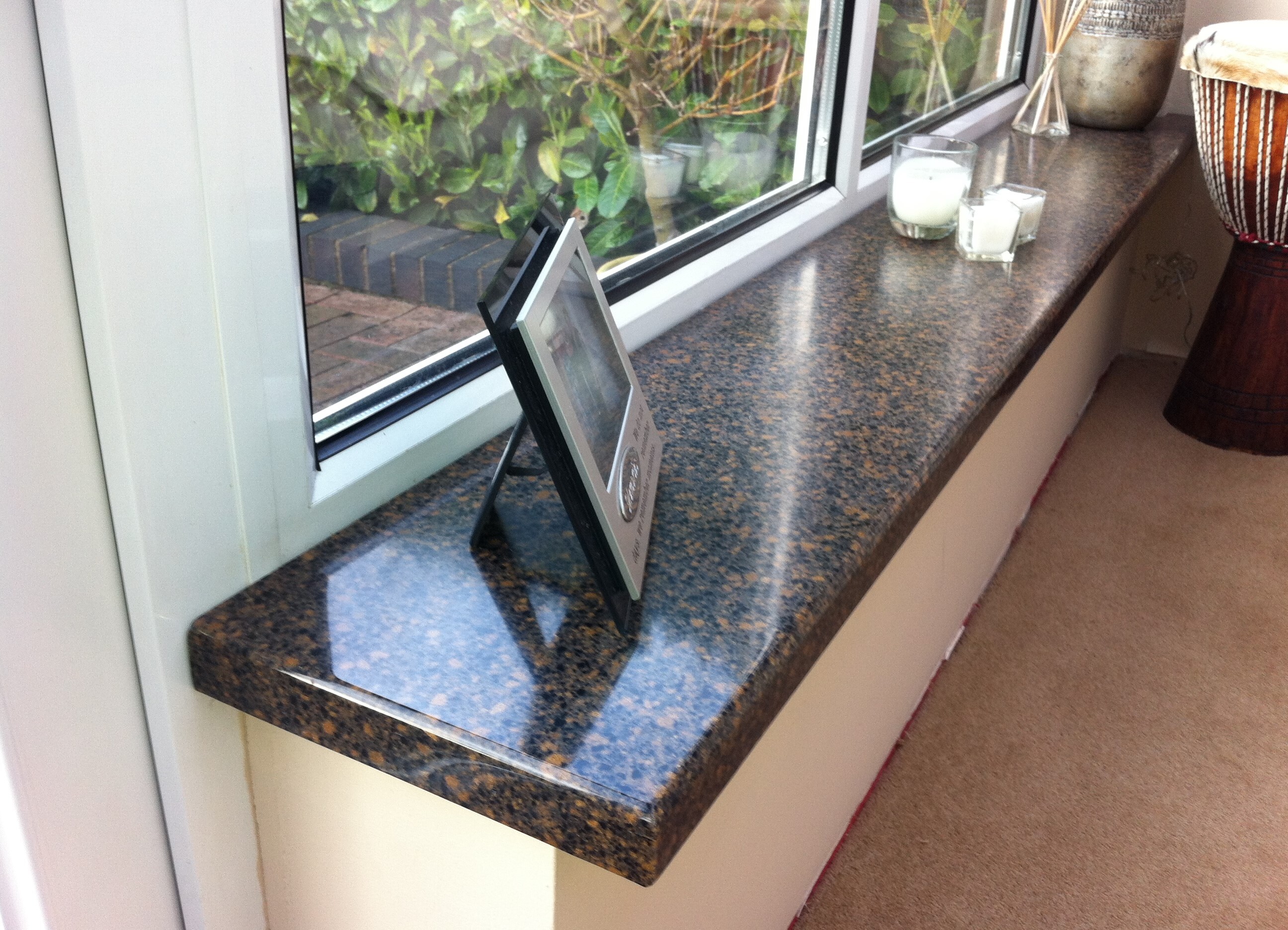

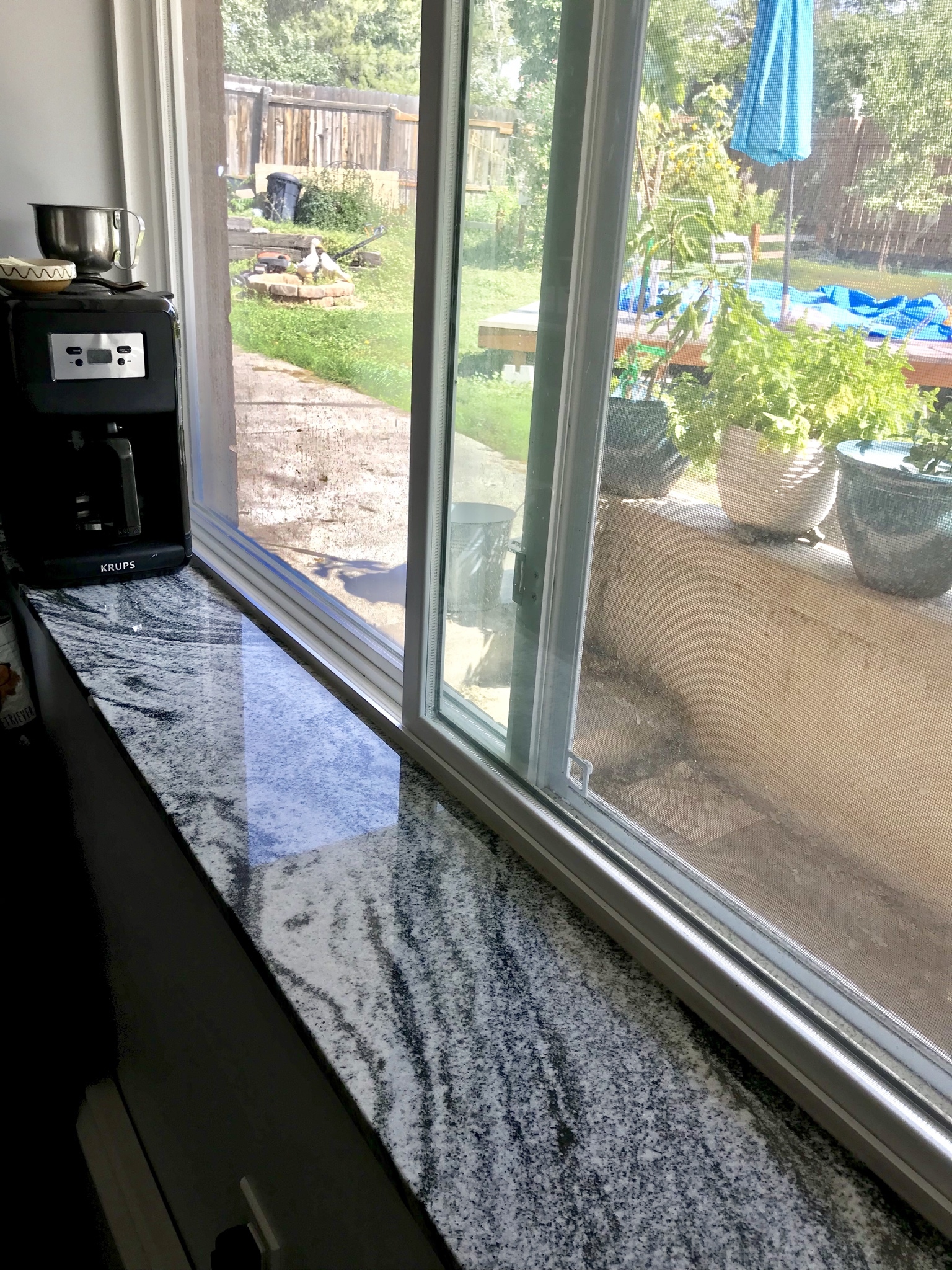

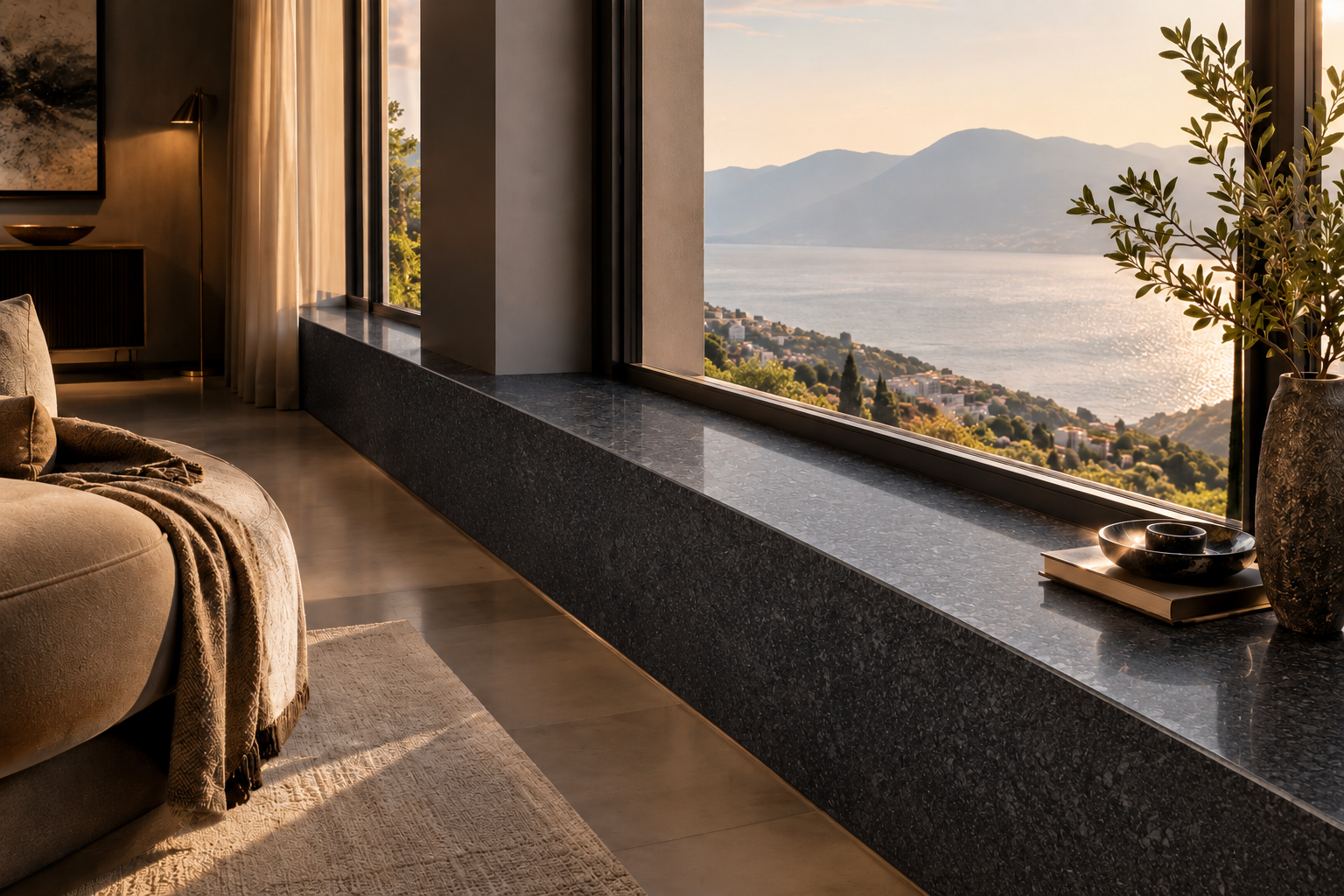

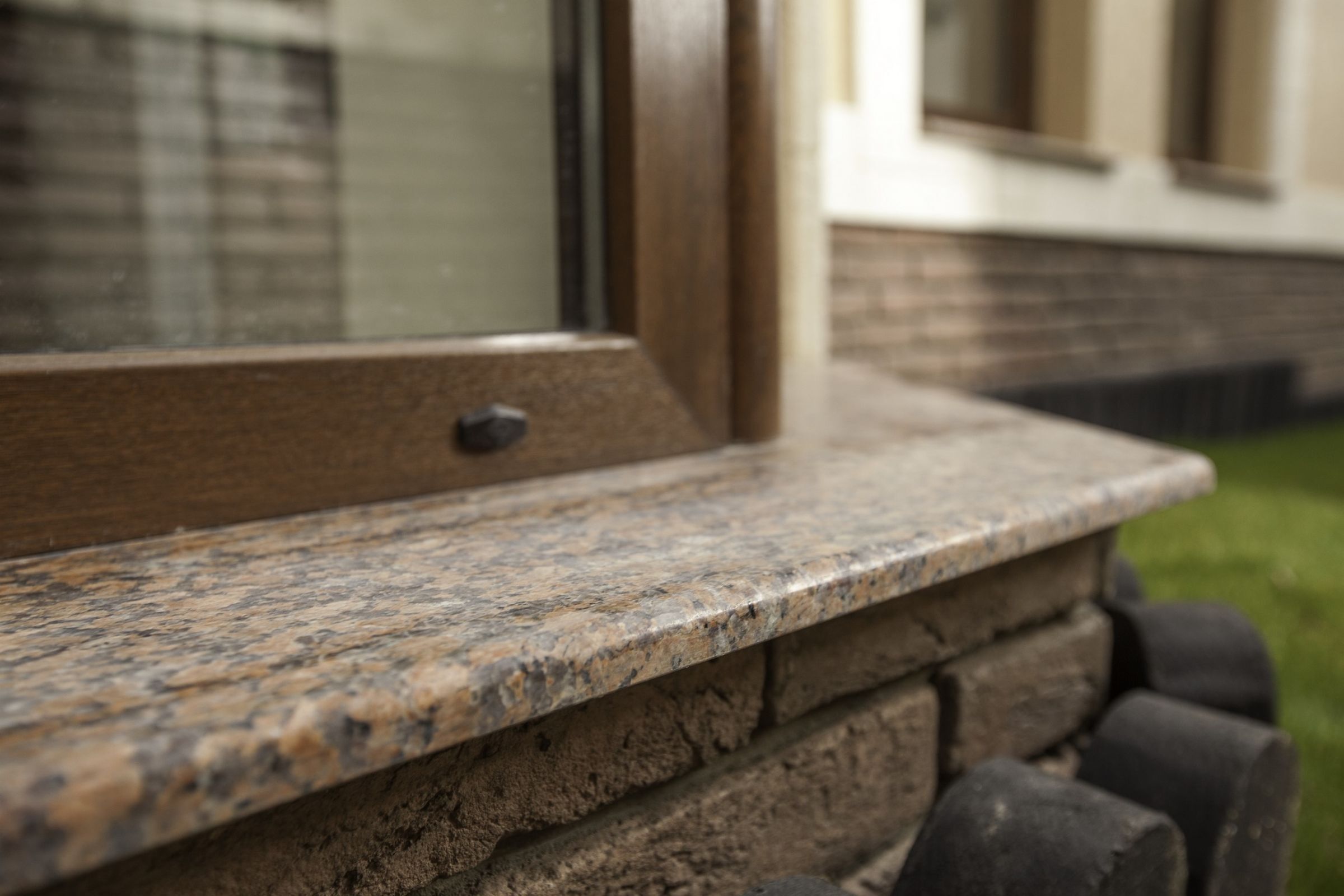

Sills, fitted and finished
Care and installation
Seal polished granite before grouting. Quartz is for interior use only. Use a suitable adhesive or thin-set for the substrate and leave a grout joint suited to the installation.
Natural variation
Natural stone varies in colour, shade, veining and finish from piece to piece and batch to batch. Quartz may show slight variation between production batches. Colours shown are indicative, so please approve a physical sample before ordering. Technical values are typical and may vary by colour, material and batch.
Certificates
Pacific's certificates on file: ISO 9001:2015, CE, NSF/ANSI 51, Kosher, EPD. Ask which apply to your order and we will send copies.
